YT1212 Geomembrane Burst Strength Tester , Burst Hydrostatic Pressure Tester

Brand Name : ZL

Model Number : ZL-2407

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 5-7 days

Packaging Details : Packaged within wooden case

Accuracy : 0.5%

Liquid inflow rate : ф3mm

Diameter of water accumulator : ф30.5mm

Maximum pressure : 2.5MPa

Sample size : ф55mm

The pressure pump : Automatically supplies water

Voltage : 220v

Pressure adjustment range : 0~2.5MPa

Dimensions : 700×750×1200mm

Weight of the whole machine : 80Kg

Contact Now

YT1212 Geomembrane Burst Strength Tester,Geomembrane Burst Hydrostatic Pressure Tester

Scope of application:

R&D and design according to SL235 Geosynthetics Test Regulations Test Method Standard for Geomembrane Bursting Strength. It is suitable for measuring the bursting strength of various geomembranes, with stable performance and convenient use.

Features:

1. Aviation aluminum structure of sample holder

2. Color large screen touch screen, digital display automatic timing

3. Extended function: the liquid inflow rate can be adjusted, and the liquid inflow rate can be displayed (to be customized)

4. One machine is multi-purpose, and can be used for hydrostatic pressure resistance test of water conservancy standard geomembrane

Technical parameters:

1. Accuracy	0.5%
2. Liquid inflow rate	100ml/min
3. Diameter of water accumulator	ф30.5mm
4. Maximum pressure	2.5MPa
5. Sample size	ф55mm
6. The pressure pump	Automatically supplies water
7. Voltage	220v
8. Pressure adjustment range	0~2.5MPa
9. Dimensions	700×750×1200mm
10. Weight of the whole machine	80Kg

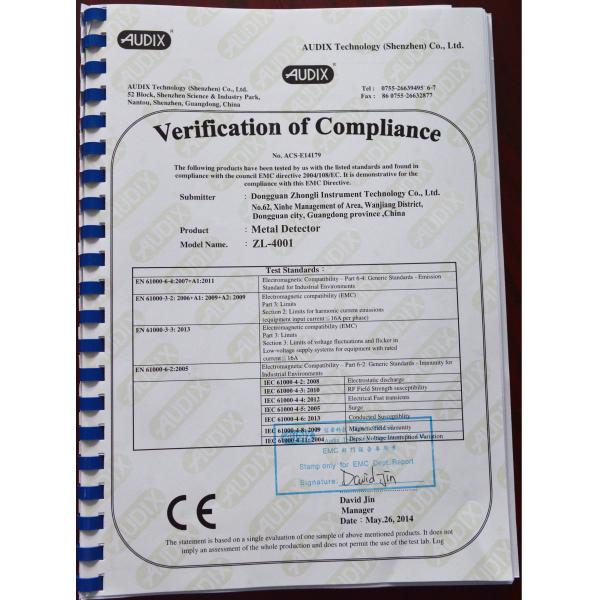

Machine Certificate:
