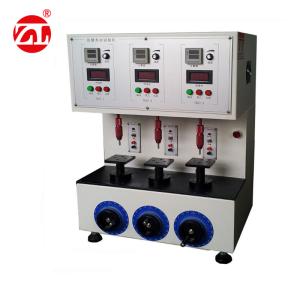

Advanced Programmable Controllers Triaxial Key And Button Life Testing Machine

Product Categories

Dongguan Zhongli Instrument Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ZL

Model Number : ZL-2801

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 sets / month

Delivery Time : 4-7 work days

Packaging Details : Key and Button Life Testing Machine is packaged within wooden case.

Product name : Advanced Programmable Controllers Triaxial Key And Button Life Testing Machine

Specifications : uni-axial LT-1, tri-axial LT-3 ,five axises LT-5

Durable speed : 1-6 rounds/s OR speed adjustable

Test pressure : MAX load: 2kgf , loaded weight adjustable

Up and dowm stroke : 10mm

The panel size : 50mm

The amount of movement in the test bench : 80 * 80mm

Key words : Triaxial Key Button Life

Contact Now

Advanced Programmable Controllers Triaxial Key and Button Life Testing Machine

Equipment summary:

Phone keys striking life aging test machineis suitable for striking life aging test of button switches,

computer keyboards, conductive rubber keypads, metal shrapnel keys (commonly known as” pot son”)

orthe same type of buttons and keys. The advanced programmable controllers will supervise the entire progress of key life test.

Technologic parameter:

Model	ZL-2801
Specifications	uni-axial LT-1, tri-axial LT-3 ,five axises LT-5
Durable speed	1-6 rounds/s OR speed adjustable
Test pressure	MAX load: 2kgf , loaded weight adjustable
Up and dowm stroke	10mm
The amount of movement in the test bench	80 * 80mm
The panel size	50mm
The impact way of movement	up and down compression using linear bearing motion,accurate positioning
Conductive test button	Automatic stopping devices if the keys non-conductive and destroyed
Automatic stop device can be set to 8 digits	99999999 times automatic shutdown
Touch warming lights	connected by touch probe with metal reeds

Download Brief:

ZL-2801A Four-station key life testing machine.pdf...
